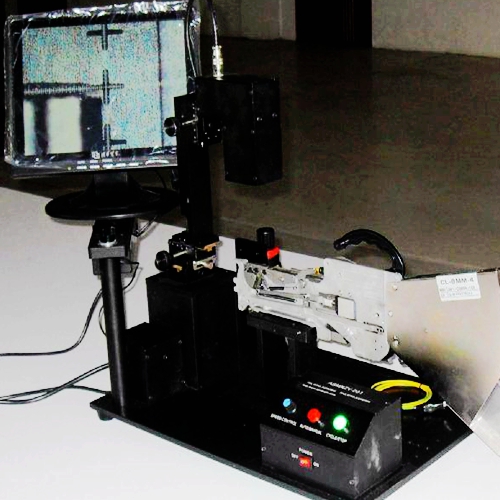

Yamaha CL Feeder Calibration jig

Part No.: Feeder Calibration jig

Brand: Yamaha

Name/Size: CL Feeder Calibration jig

Specifiction: CL Feeder Calibration jig

Yamaha CL Feeder Calibration jig

1.With simple structure, simple operation, and optimized function. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency.

2.High accurate inspection. Pick up position, height, all can be measured with accuracy so that can better measure the quality.

3.With 10 inch LED display, circled LED lighting, 50X CCD, tight structure.

4.Simple operation, can simulate the SMT machine, monitor
The pickup position continuously automatically, so can better understand the feeder running quality in order to control the casting rate.

5.Machine Model: Panasonic CM202 Feeder Calibration,You can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG;

6.The functions and features:

1）Precise XY axis adjustment;
2）Axis camera can be directly adjusted;
3）220V/24V DC power supply;
4）black and white cross reference cursor;
5）Automatically step function;
6）bright LED display;
