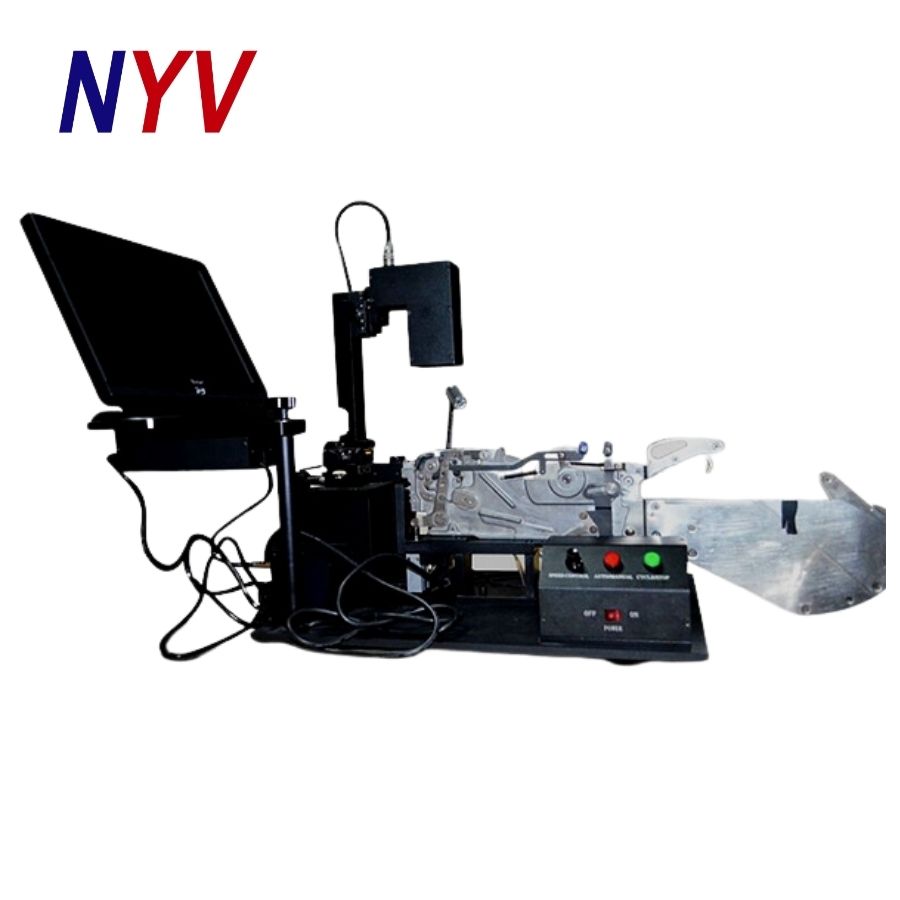

JUKI smt feeder calibration jig

Equipment Name:feeder calibration machine
Machine use:For a variety of models feeder correction
Machine size:L500*W350*H500MM
Net weight: 35.0kg
Gross weight: 45.0kg
Power: 220V
Compressed air demand: 5kg / cm2

JUKI smt feeder calibration jig’Specification & Feature
1. machine has simple structure, convenient operation, function optimization. And using high precision 0 gap guide, ensure the position stability, greatly improve the work efficiency.

2.precise detection. Taking position, height, pressure bar height, can be accurately measured. Can better grasp the quality status.

3. with 10 ‘ color LED display screen, circular LED lamp lighting, 50 times magnification CCD camera, make the structure more compact, beautiful. Effectively reduce eye fatigue, improve work quality.

4. convenient operation, and can simulate the placement machine, automatic continuous observation material position, can be a clear understanding of FEEDER continuous operation quality, thus more effective control of polishing material rate.

5. can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG.

6. function and characteristics:

1）accurate X-Y axis adjustment;

2)can be directly adjusted by the camera axis，

3) built-in 220V DC power supply,
4)black and white cross reference cursor,

5) automatic and step function,
6 super bright LED display，
7) precision feeder control fixture;
8) precisely 8 * 2mm / 4mm / 16 * 12 * 24 * 8mm 8mm and feeder control tape.

How to use it？
1.The acquisition for the rectangular coordinate of X-Y direction.
2.Check for the existence, transformation, user in the feeder
3.The installation is to euip it with actual device and consolidation in feeder base
4.Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis
5.The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)6.The simple calibration for removing or taking feeder easily
7.It is correction as measurement with CCD Camera.
8.Timer control make it pssible to change the IC pick-u time.
